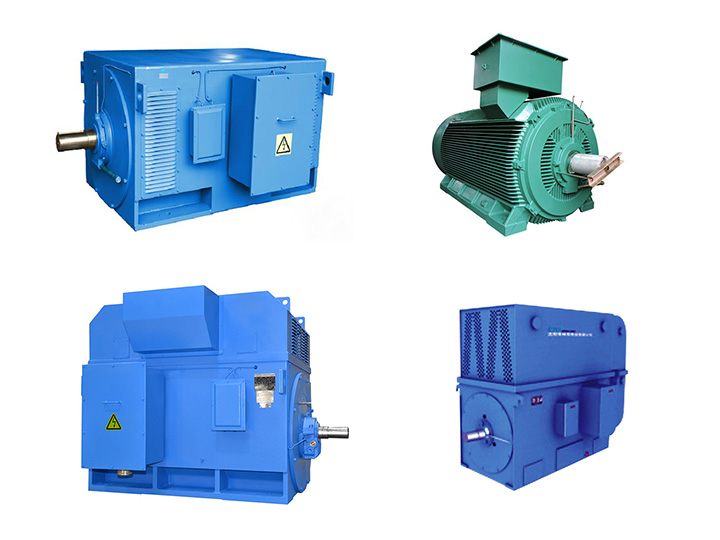

功率范圍（Power）：160－3000kW
● 本系列高壓三相異步電動機性能和安裝尺寸符合IEC標準和GB755標準及有關專業技術標準，且我公司已多次通過ISO9001國際質量體系的認證，從訂貨、開發、制造、檢驗、銷售、服務全過程全部按照ISO9001質量體系的要求進行控制。
● 本系列高壓三相異步電動機具有高效、節能、低振動、低噪音、性能可靠、安裝維護方便等特點。
● 本系列高壓三相異步電動機供電電源為三相工頻50Hz（或根據需要為60Hz）電源，電源等級6kV，也可根據客戶需要設計成為3kV、3.3kV、6.6kV、10kV、11kV等，安裝方式一般為IMB3，也可根據客戶需要設計成IMB35。電機的結構件選用優良的鋼板，對結構進行優化設計，確保電機的結構剛性和強度的要求。
● 本系列高壓三相異步電動機采用了高導磁低損耗冷軋無取向硅鋼片，因而損耗低，效率高。電動機采用可靠的F級絕緣結構，溫升按B級考核設計。絕緣均采用高級云母帶作為絕緣材料，配以VPI（真空壓力浸漆），與完善的絕緣設計相得益彰，使得絕緣完整無隙，繞組端部剛度好，可耐受高的開關和換向強度，F(xiàn)級的絕緣使電機有高熱穩定性，長的使用壽命。轉子的平衡技術包括靜平衡、動平衡、運轉整體平衡。所有電機均符合國際標準的振動要求，轉子平衡對于軸承壽命有著密不可分的關系。軸承及結構的設計選用充分考慮電機形式，受力，轉速，潤滑方式，包括滾動軸承，滑動軸承，油封設計及油脂的選用等，性能可靠，維護便捷。對所有電機的軸承均沒有不停機的注排油裝置。
● Y系列基本冷卻方式為IC01，YKK系列為空-空冷卻，YKS系列為空-水冷卻，即IC611，冷卻散熱條件比較成熟。
● Y系列高壓電機外殼防護等級為IP23，YKK/YKS系列高壓電機外殼防護等級為IP44或IP54，這兩種防護等級都能防止濺水進入電動機內部。公司也可根據用戶的要求制造成其它防護形式的電動機，具體情況可與本公司簽訂技術協議。
● 本系列電動機運行在額定電壓和頻率下直接啟動或降壓啟動。
● 本系列高壓三相異步電動機為一般用途的三相異步電動機，可用于驅動各種通用機械設備，如壓縮機、風機、水泵、破碎機等機械設備。
Power range (Power): 160-3000kW
● The performance and installation dimensions of this series of high-voltage three-phase asynchronous motors comply with IEC standards and GB755 standards and relevant professional technical standards, and our company has passed ISO9001 international quality system certification many times, from ordering, development, manufacturing, inspection, sales and service. The entire process is controlled in accordance with the requirements of the ISO9001 quality system.
● This series of high-voltage three-phase asynchronous motors are characterized by high efficiency, energy saving, low vibration, low noise, reliable performance, convenient installation and maintenance.
● This series of high-voltage three-phase asynchronous motor power supply is three-phase power frequency 50Hz (or 60Hz according to needs) power supply, power level 6kV, can also be designed to 3kV, 3.3kV, 6.6kV, 10kV, 11kV, etc. according to customer needs, installation The mode is generally IMB3, and can also be designed as IMB35 according to customer needs. The structural parts of the motor are made of excellent steel plates, and the structure is optimized to ensure the structural rigidity and strength of the motor.
● This series of high-voltage three-phase asynchronous motors adopts high magnetic permeability and low loss cold-rolled non-oriented silicon steel sheets, so the loss is low and the efficiency is high. The motor adopts a reliable Class F insulation structure, and the temperature rise is designed according to the Class B assessment. Insulation is made of high-grade mica tape as insulation material, combined with VPI (vacuum pressure dipping paint), which complements the perfect insulation design, making the insulation complete without gaps, the winding end stiffness is good, and can withstand high switching and commutation strength. Class F insulation gives the motor high thermal stability and long service life. The balance technology of the rotor includes static balance, dynamic balance, and overall balance of operation. All motors meet the vibration requirements of international standards, and rotor balance is inextricably linked to bearing life. Bearing and structure design takes full account of the motor form, force, speed, lubrication, including rolling bearings, sliding bearings, oil seal design and grease selection, etc., reliable performance and easy maintenance. There are no oil and discharge devices for all motors that do not stop.
● Y series basic cooling mode is IC01, YKK series is air-to-air cooling, YKS series is air-water cooling, ie IC611, cooling and cooling conditions are relatively mature.
● The Y series high voltage motor housing is IP23, and the YKK/YKS series high voltage motor housing is IP44 or IP54. Both protection levels prevent splashing water from entering the motor. The company can also manufacture motors in other forms of protection according to the requirements of users. In specific cases, it can sign a technical agreement with the company.
● This series of motors operates directly at the rated voltage and frequency to start or step down.
● This series of high-voltage three-phase asynchronous motors are general-purpose three-phase asynchronous motors that can be used to drive various general mechanical equipment such as compressors, fans, pumps, crushers and other mechanical equipment.
